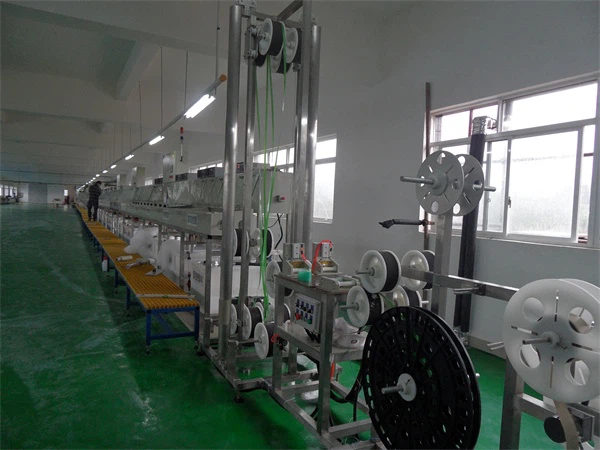

Continuous Plating Line

Continuous plating production line is a kind of high efficiency and high quality surface treatment equipment, which is widely used in the surface coating processing of metal, plastic, glass and other materials. The following is the product description for the continuous plating production line:

1. Technical feature
Vacuum magnetron sputtering technology: the continuous plating production line adopts the vacuum magnetron sputtering technology, combined with the twin cathode and medium frequency sputtering technology, to ensure the quality and uniformity of the coating.
Control system: the production line is equipped with an advanced control system, which can realize the automation and intelligent management of the production process.
Multi-vacuum chamber design: the production line can be configured with multiple vacuum chambers according to the needs, and each vacuum chamber can be configured with different target materials to meet the plating requirements of different film layers.
Independent vacuum extraction system: an independent vacuum extraction system is adopted between each vacuum chamber, and the gas parameters of each vacuum chamber can be adjusted at will to achieve the best coating effect.

2. Function and application
Type of coating: continuous plating production line can be plated in engineering plastics, glass and metal surface of single quality metal film, composite film, electromagnetic shielding film, ITO film and other film layers.
Production efficiency: the production line adopts continuous high efficiency magnetron sputtering coating technology, which can quickly complete mass production tasks.
Product performance: the coated product not only improves the appearance quality, but also can increase other properties of the product, such as corrosion resistance, wear resistance, etc.

3. Operatonal process

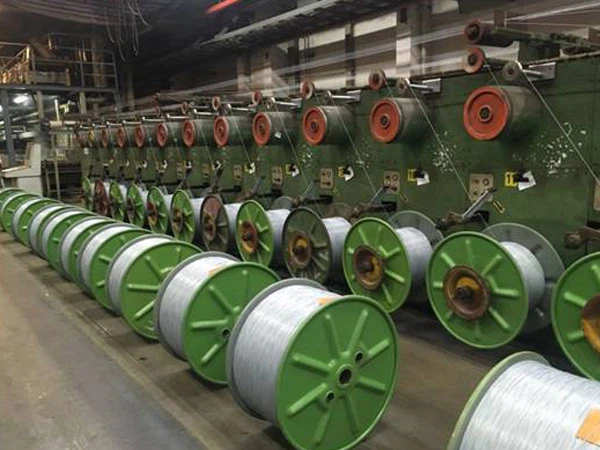

Roll loading: load the roll requiring coating treatment into the winding of the production line so that it can be smoothly pulled out and through the whole production line.
Pretreatment: After the coil is pulled out, pretreatment, including cleaning the surface, eliminating the oxide film on the metal surface and degreasing.
Coating: after the completion of pretreatment, the coil enters the coating process, and then the required film layer is formed on the surface by vacuum magnetron sputtering technology.

4. Degree of automation
Continuous plating production line has a high degree of automation, and the operation mode can be selected as fully automatic or semi-automatic. Under the automatic operation mode, the production line can realize automatic material receiving and discharging, automatic speed adjustment for buffer and other functions, which greatly improves the consistency of production efficiency and product quality.
In short, the continuous plating production line is an efficient, high quality and highly automated surface treatment equipment, suitable for the surface coating processing requirements of various materials.

We will arrange a special person to connect with you about the following content:
1. According to customer needs, we will show the suitable plating production line scheme, including equipment performance, process flow, production efficiency and other aspects.
2. We can provide customized solutions to tailor production line solutions for customers based on customers' production site, raw material characteristics, product requirements and other factors.
3. We will share our successful cases to help customers further understand the use of our rolling plating production line.
